MIXING 2 EVO
MIXING 2 (EVO): COMBINED THERAPY

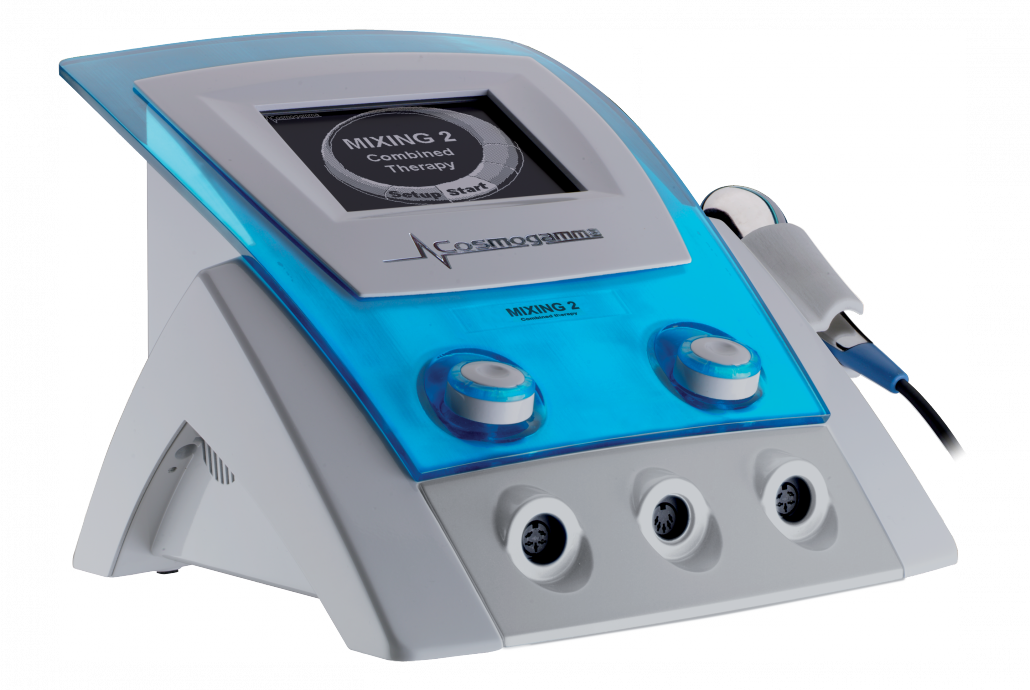

MIXING 2 is an electrotherapy stimulator with built-in ultrasound unit. It features two independent stimulation channels with adjustable intensity for the delivery of low and medium frequency treatment. The ultrasound unit operates at 1MHz frequency. Ultrasound operation is independent or in combination with one of the two stimulator channels.
PATIENTS DATABASE allows storing:
• patients data
• pathology
• description of treatment
• treatment customisation
• evaluation of pain level at the beginning and at the end of treatment
Our patient database provides immediate access to the customized treatment allowing it to be easily and quickly repeated.
PROGRAMS AND SEQUENCES
Huge memory to store new programs and sequences of combined programs. this allows creating customized treatments tailored to the patient’s specific needs.
MAIN FEATURES:
Continuos output with maximum power of 2W/cm²
Pulsed output with maximum power of 3W/cm²
Pre-set programs for common pathologies
Visual and acoustic no-contact indication
Real treatmen time (timer stops in case of bad contact)
Ample graphic display showing all output parameters
Facility for connection of ultrasound unit with a stimulator channel for a combination therapy
11 stimulation modes (types of current)
Simple or combined pre-set treatment protocols
User-programmable protocols for each of the 11 modes of emission
Possibility to sequence programs belonging to the same output mode
Constant-current/constant-voltage
User-Friendly System
Patients database
Possibility to store modified programs and protocol sequences
STANDARD EQUIPMENT:
1 pc. – 1MHz/5cm2 soundhead (A01.00053)
1 pc. – 260gr. gel tube (R/273)
2 pcs. – Electrostimulationcables (C/IS)
4 pcs. – Elettrodes 60X40 mm (EL/1)
2 pcs. – Elettrodes 60X60 mm (EL/2)
2 pcs. – Elettrodes 60X120 mm (EL/3)
4 pcs. – Pads for EL/1 (S/1)
2 pcs. – Pads for EL/2 (S/2)
2 pcs. – Pads for EL/3 (S/3)
2 pcs. – Elastic straps 50 cm (F6)
2 pcs. – Elastic straps 100 cm (F7)
1 pc. – Black splitting cables (C/DU-N)
1 pc. – Red splitting cables (C/DU-R)
1 pc. – Black cable with 2 mm plug (C/RD-N)
1 pc. – Red cable with 2 mm plug (C/RD-R)
1 pc. – Power cable (C/A)
OPTIONAL EQUIPMENT:
Point Electrode (M/SP-P)
Vaginal electrode (EV/1)
Vaginal electrode (EV/2)
Vaginal electrode (EV/3)
Vaginal electrode (EV/4)
Anal electrode (EL/A)
Evoline bag (A02.00241)
Evoline trolley (A01.00128)
Tray for Evoline trolley (A01.00047)
TECHNICAL DATA:
Power supply: 115 – 230 V (±10%) 50-60Hz
Input: 80 VA
Weight: 4,2 Kg.
Dimensions (LxWxH): 33 x 32,8 x 23 cm
Insulation class: Class I – BF type
TECHNICAL DATA Ultrasound:
Rated frequency: 1MHz
Number of heads: 1
Pulse frequency: 100Hz
Output: continuous and pulsed
Intensity: 0 ÷ 2W/cm2 continuous
0 ÷ 3W/cm2 pulsed
Soundhead: 1MHz, 5 cm2 with no-contact light indication, suitable for underwater treatments
Time: 0 ÷ 30 min
STIMULATION MODES:
Tens: It features many resident programs for most common pathologies. Frequency: 2÷200 Hz. Pulse duration: 50÷600 µs. Intensity: 0÷250 mA (Ipp).
Muscle: symmetric bidirectional pulses. Features a file with a number of programs for the treatment of different muscle conditions. Frequency: 2÷200Hz. Duration: 50÷600 µs. Intensity: 0÷250mA (Ipp).
Bipolar interferential current: amplitude-modulated square-wave bidirectional current. Square-wave frequency: 4000Hz. (±20%) Sinusoidal frequency of modulation: 5÷200Hz. Intensity: 0÷250mA (Ipp).
Tetrapolar vector: Amplitude-modulated bidirectional current. Square wave frequency 4000Hz. Sinusoidal frequency of modulation 5÷200Hz,
Intensity 0÷250 mA (Ipp)
Kotz: Interrupted sinusoidal current. Sinusoidal frequency: 1000÷2500Hz. Modulation frequency: 5÷200Hz. Intensity: 0÷250mA (Ipp).
Faradic current: Unidirectional pulses. Frequency: 1÷100Hz. Intensity: 0÷130mA (Ip).
Iontophoresis: interrupted unidirectional current. Frequency: 8000 Hz. Duty cycle: 95%. Intensity: 0÷30mA (Ip).
Diadynamic currents: single-phase (MF), two-phase (DF), short-period (CP), long-period (LP). Intensity: 0÷30mA (Ip).
Pulses: rectangular and triangular unidirectional pulses. Duration: 1÷1000 ms. Pause: 1÷5 s.Intensity: 0÷30 mA
Traebert: rectangular, unidirectional current. Pulse duration: 2 ms. Pause: 5 ms. Intensity: 0÷30 mA
Urology: bidirectional symmetrical pulses. Frequency:2 ÷ 200 Hz. Pulse duration: 50÷600 µs. Maximum current:250 mA (Ipp). Output characteristic:constant voltage (CV)
